Audio parameters
|
Stereo type
|
Single 10-inch two-road full-frequency audio system
|
HF driver
|
1x 1 "outlet compression unit (titanium film vibration system, 1,75" sound ring)
|
Bass unit
|
1x 10 "Bass Unit (waterproof, 2.5" ring)
|
Available bandwidth
|
45Hz - 20kHz
|

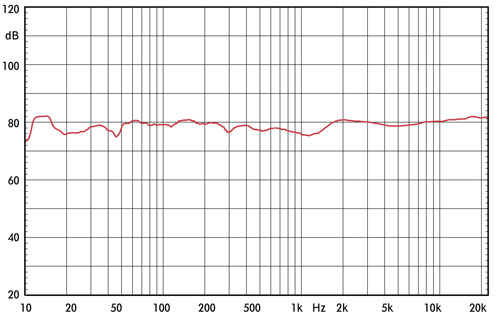

Frequency response
|
48Hz - 20kHz (+/-3dB)
|
Maximum sound pressure level
|
123dB (Continuous), 131dB (peak)
|
Sensitivity(1W@1m)
|
98dB
|
Projection Angle
|
(-6dB) 90°x 70 Rotary
|
Impedance
|
8 Ohm
|
Power
|
350W(Continuous / RMS) / 700W (peak)
|
Recommended power
|
750W，8 Ohm
|
Physical parameters
|
Box material
|
15mm Baltic Birch
|
Painting process
|
Polyurea, high efficiency and wear-resistant, waterproof paint, black
|
Box slope
|
Article 50 and Article 25
|

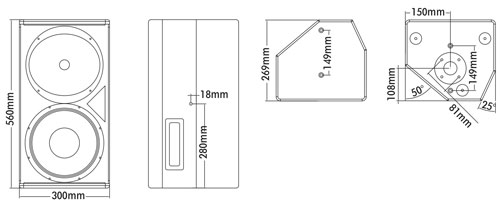

Size
|
558mm x 300mm x 269mm(High x wide x deep)
|
Weight empty
|
17.2 KG
|
Rough weight
|
18.7 KG
|
Veil
|
Black epoxy perforated iron mesh, adhesive high penetration audio dedicated cotton
|
Connector
|
2x NL 4 (NEUTRIK), 1+/1-,2+/2-(Signal passes through ultra-low)
|
Frequency points
|
Built-in split frequency
|
Hang
|
Integrated hanging system
|
Support rod hole
|
√
|
Ergonomic handle
|
√
|
Non-slip rubber pad
|
√
|
