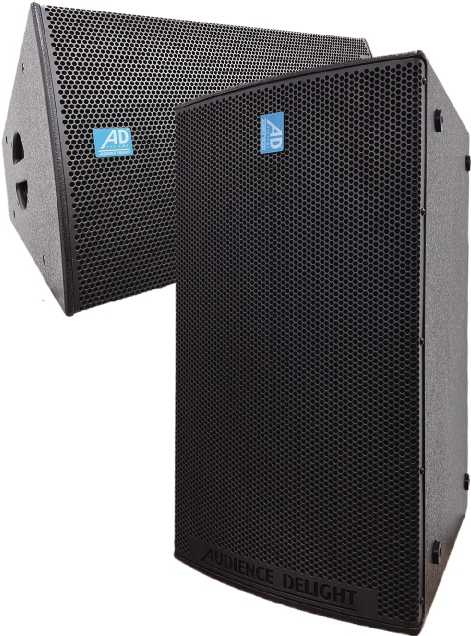

model |
MD15L |
MD15W |
frequency response ： |
42Hz-20KHz |
42Hz-20KHz |
sensitivity 1W@1m： |
103dB SPL |
103dB SPL |
Maximum sound pressure∶ |
143dB（Peak） |
143dB（Peak） |
Projection Angle∶ |
110°X10° |
110°X30° |
impedance ∶ |
8 Ohms |
8 Ohms |
unit∶ |
1×15"/1×3"Neodymium magnetic unit |
115 "/ 13" Neodymium magnetic unit |
connect∶ |
2×NL4 |
2×NL4 |
Power/W∶ |
550/1100W |
550/1100W |
Box size（H×W×D） ∶ |
742mmx438mmx502mm |
742mmx441mmx502mm |
Box material∶ |
15mm Baltic Balch, high strength polyurea wear-resistant waterproof paint |
|
|
|
